Universal Temperature Regulation Cryogenic System “UTRECS” for microoptical measurements

“UTRECS”

“UTRECS” A-287

“UTRECS” A-287 is used with the optical microscope Olympus BX41 for microoptical measurements in a temperature range between 5 K and 350 K.
“UTRECS” A-287 is a patent pending system in Russia and Ukraine.

Features:
Temperature range 8 – 350 К
(дискретність: < 0,1 К)
Temperature stability ±0,01 K
Diameter of sample holder 15 mm
Cryoagents liquid He (8 – 350 K)
liquid N2 (80 – 350 K)
He consumption (10 K) < 0.1 liter/hour
N2 (80 K) < 0,2 liter/hour
Overall dimensions 590 х 313 х 160 mm
Net weight < 8 kg

Applications:

  • material science;
  • solid-state physics;
  • biophysics and medicine.

“UTRECS”

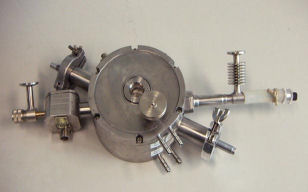

“UTRECS” C-40

“UTRECS” C-40 is a continuous-flow He-N2 cryogenic system used with optical microscopes for microoptical measurements in a temperature range between 40 K and 1000 K.

Features:
Temperature range 40 – 1000 К
(resolution : < 1K)
Temperature stability ±0,01 K
Diameter of sample holder 15 mm
Cryoagents liquid He (40 – 350 K)
liquid N2 (80 – 350 K)
without cryoagent (350 – 1000 K)
Dimensions diameter:< 150 mm; height: < 70 mm
Mass < 10 kg

Applications:

  • material science;
  • solid-state physics;
  • biophysics;
  • pharmaceutics.

“UTREKS”

“UTREKS” B-30

“UTREKS” B-30 is used with the scanning electron microscope REMMA-102 for microoptical measurements in a temperature range between 5 K and 300 K.
“UTREKS” B-30 is a patent pending system in Ukraine.

Features:
Temperature range 5 – 300 К
(resolution: < 0,15К)
Cool down time (5 К) < 1 hour
Temperature stability < 0.1 K
Diameter of sample holder 15 mm
X-Y shift ±7 mm
Dimensions 565 x 92 mm
Net weight < 1,5 kg

Applications:

  • material science;
  • solid-state physics.

Developer:

Cryogenic Technologies Laboratory of the Institute of Physics (I.P. Zharkov).

Contact information:

Tel. +380 44 525-98-41
E-mail: fesenko@iop.kiev.ua
